The cutter compactor recycling pelletizing line offers a one-step, efficient and sustainable solution for recycling a wide range of plastic materials. The compactor recycling system produces pellets that can be fed directly into blown film, pipe extrusion and injection molding production — eliminating the need for additional processing steps and helping manufacturers save both time and cost.

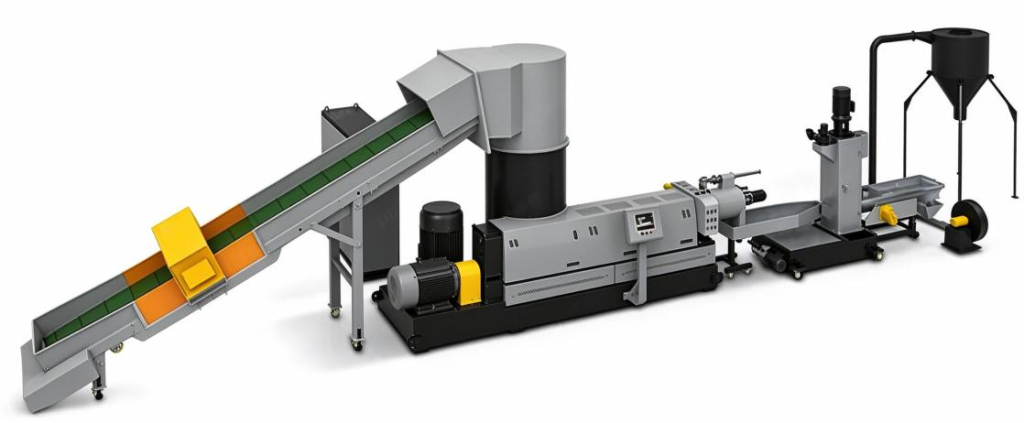

Intelnov-CT Single-stage Cutter Compactor Plastic Recycling Pelletizing System

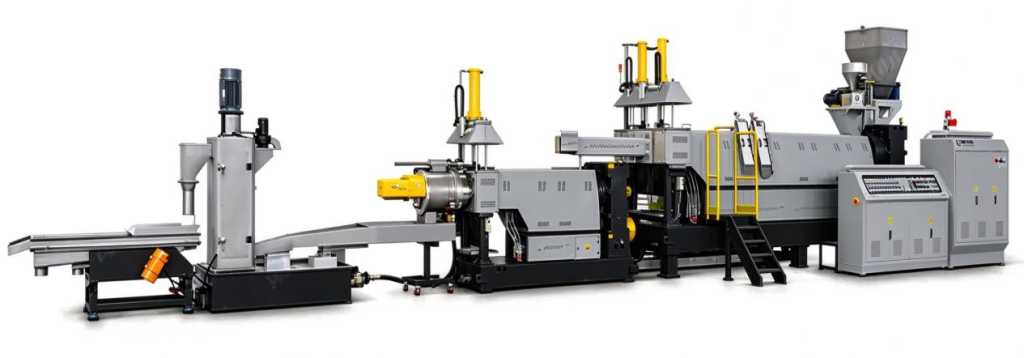

Intelnov-DCT Two-Stage Cutter Compactor Plastic Recycling Pelletizing System

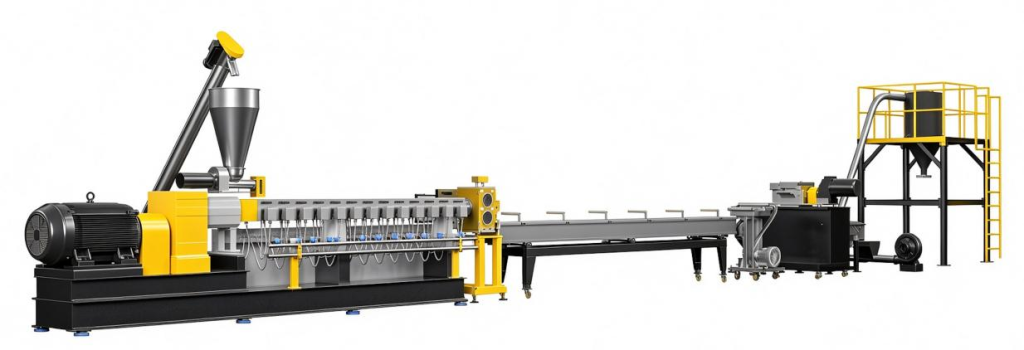

Intelnov -PTS Parallel Twin Screw Recycling Pelletizing Extruder For Plastic Compounding
♲ What is a Cutter Compactor Recycling Pelletizing Line?
A cutter compactor recycling pelletizing line is a one-step recycling system that integrates crushing, compaction, plasticization, and pelletizing. It is ideal for recycling and pelletizing plastic film, raffia, filaments, bags, woven bags, and foamed materials.
How Does It Work?
The cutter compactor pelletizer first crushes plastic waste into small flakes. These flakes are then compacted and heated in the compactor section, where the plastic melts and impurities are removed. The molten plastic is fed into the pelletizer and cut into uniform pellets. The resulting pellets can be used directly in blown film, tube extrusion, and injection molding production.
Unlike a shredder, a cutter compactor uses stationary and rotary blades within a rotating chamber to cut and compact various types of plastic waste. It also preheats and dries the material, making it easier to feed into the extruder. This machine is well-suited for low-to-medium volume production with simple shapes and loose tolerances.
Choosing a cutter compactor recycling pelletizing line is a smart move for plastic recycling. It is an intelligent, one-step system that combines crushing, compaction, plasticization, and granulation to save both time and money. It produces high-quality pellets from a wide range of plastic materials—including film, raffia, filament, bags, woven bags, and foam—while helping to protect the environment and reduce plastic pollution.
Applications of Cutter Compactor Recycled Pellets:
- Blown film
- Tube extrusion
- Injection molding
- Other plastic processing applications
♲ Your Trustworthy Partner for Integrated Plastic Recycling Systems
Unlike conventional granulation machines, ANNOV’s plastic pelletizing line features a cutter compactor (agglomerator) mounted directly on the main extruder. This innovative design makes the machine more compact and efficient. The material is preheated, cut, mixed, and fed into the extruder as granules. The extruder is equipped with a degassing system and a hydraulic screen changer to produce high-purity pellets.
Embracing Industry 4.0 smart manufacturing trends, we utilize an intelligent PLC control system with a user-friendly HMI interface, significantly enhancing automation levels. We also incorporate digital program logic technology and ECO inverter modules to build fully automatic pelletizing systems that meet the growing demand for recycling. Furthermore, our innovative pneumatic constant-pressure control technology improves pelletizing stability. The cutter compactor features unique reverse-feeding technology and a baffle structure, which enhances the feeding and recycling efficiency of filament fibers.
Recycling plastic waste through a compaction granulator and converting it into high-quality pellets for various applications helps reduce the environmental impact of plastic waste. Contact the ANNOV team to learn more or to receive expert guidance on selecting the right plastic recycling machinery.
